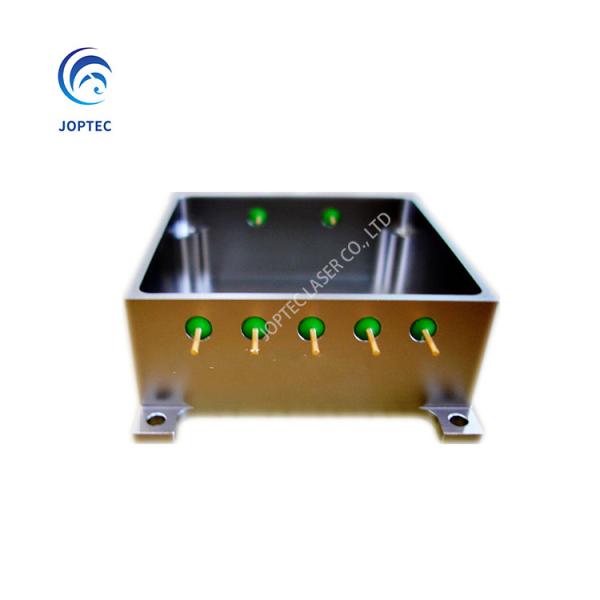

Name: Thin Flange Compression Hermetically Sealed Packaging
Brand: JOPTEC
Price: 1 USD

Add to Cart

Product Model	JOPTEC
Product Name	Thin Flange With Good Current Capacity Compression sealing
Plating Coating	Fully plating Au or selective plating Au
Finish	Package and pins and lid are plated Ni:1.3~8.9um and pins are plated Au≥1.3um
Product Composition	Material	Quantity
1. Cavity	CRS1010	1
2. Pin	4J50 Copper Cord	7
3. Glass insulator	Elan#13	7
4 .Lid	4J42	1
Dielectric Voltage	AC 220V Between pin and package humidity under 45%~55% leak rate less than 1mA
Insulation Resistance	500V DC resistance between two arbitrary pins is ≥1*10¹⁰Ω
Hermeticity	Leak rate is ≤1*10^-3Pa.cm³/s
Product Features	1. Housing material adopts CRS1010 which has good heat dissipation.
	2. The pin material adopts Copper cored alloy which has low resistance that can load high voltage.
	3. The method of sealing cap is parallel sealing welding.
	4. The pin cross bottom or sidewall which can be designed according to customers' needs.
	5. The position of ground lead can be designed according to customers' needs.
	6. The design of lid fits the dimension of package.
	7. Customers could choose fully plating or selective plating.
	8. All index of parameter conform to requirement of GJB548
