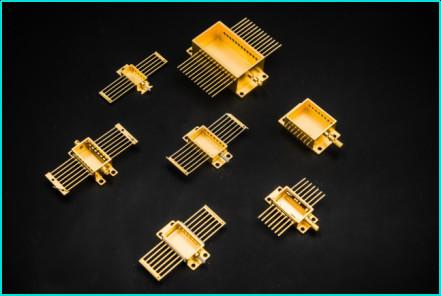

    Multi Piece Flatpack Butterfly Package

    Ask Lasest Price
    Brand Name : JOPTEC
    Payment Terms : T/T
    Supply Ability : 5000000 PCS/Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    Multi Piece Flatpack Butterfly Package

    Product name:Kovar to glass sealing metal package
    Finish:Fully plating Au. (Fully plating or selective plating Au.)
    Plating coating:The shell, the lead plating Ni:1-11.43um, plating Au:1.0-1.3um; the cover plate plated Ni:4-11.43um, plating Au: 0.6-2.0um.
    Product formation:MaterialQuantity
    1. Cover plate4J42(42alloy)1
    2. Welding ringHLA Cu281
    3. Lead4J29(Kovar)2
    4. Glass insulatorBH-A/K2
    5. Frame4J29(Kovar)1
    6. Bottom floor4J29(Kovar)1
    Insulation resistance:500V DC, resistance between linked leads and package is ≥1*109Ω
    Air tightness:Leak rate is ≤ 1*10-3 Pa*cm3/s
    Product features:1.Flat metal package use shell meterials such as Kovar FeNi42 CRS Kovar+Wcu.The separate structure adopts base material such as Wcu,OFC,OFHC or CRS1010;
    2.Customer can choose the height of shell.
    3.According to shape of cross-section we distinguish leads as rectangular section chemical corrosion lead and cyclinder lead which are choosen by customers.
    4.The method of sealing cap use reliable parallel sealing welding.
    5.Lead cross the sidewall and customers choose the shape and height of leads.
    6.The position of groud lead is decided by customer.
    7.Lid is designed to fit the dimension of shell.
    8.The performance of shell would be provided after electroplating.Customers also choose finish to be fully plating Au or selective plating Au.
    9.All index of parameter conform to GJB548
